Vehicle   parameters

Body   size: L*W*H (mm)

3994*1618*1511

Wheel   Base (mm)

2400

Front   wheelbase (mm)

1420

Rear   wheelbase (mm)

1410

Ground   clearance (mm)

170

Number   of doors

4

Number   of seats

5

Luggage   compartment volume

Middle Size

Axis   Load (Front/Back)

449KG/476KG

Curb   Weight (kg)

925

Maximum   Load Mass (kg)

535

performance   index

Maximum   speed (Km/h)

50

Maximum   driving distance

575KM

One   time electric generating Mileage

180-200

Extender   Generating Mileage

375

Charging   mode

Slow charge

Charging   time (h)

10-12

Power   consumption (Kwh/100Km)

6KWH

Maximum   climbing angle

≥25%

Drive

Driving   mode

FWD

Power   battery

Battery   type

Maintenance free battery

Rated   voltage

12V

Number   of Batteries

6

Rated   capacity

100AH

Nominal   quantity of electricity

7.2KWH

Drive   motor

Type   of motor

AC motor

Motor   model

XQY4-60-H2

Rated   power

4KW

Peak   torque

70N.m

Motor   controller

Input   voltage

72V

SMC   Power Management System

Charger   location

Built-in

Output   current

16A

Input   voltage range

90-250V

Plug   type

Free customization

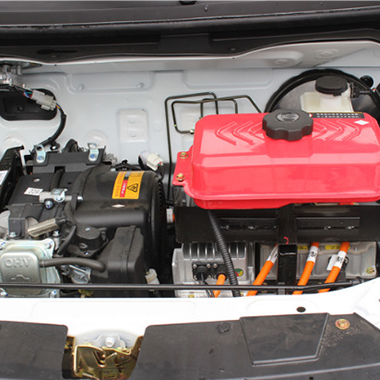

Generator   system

Generator   power

4KW

Tank   volume

15L

100   km fuel consumption

4L

Increase   mileage

375KM

Transmission   case

Gearbox   type

Automatic

Shift   mode

push rod

Block   number

4（E/D/N/R）

Chassis

Front   suspension type

Mcpherson   independent   suspension

Rear   suspension type

Trailing arm rear axle

Front   brake type

Disc brake

Rear   brake type

Drum brake

Parking   brake type

Hand brake

Tire   specification

165/65R14

Hub   material

 Aluminium   alloy

Safety   equipment

Vehicle   central control lock

YES

Remote   key

YES

Hill   Start Assist

YES

Rear   View Camera

YES

Reverse   Sensor

YES

Charging   to prevent leakage

YES

Charging   automatic power failure

YES

Brake   power break

YES

Vehicle   body stability control

Combination   Braking   System

Failure   beep alarm

YES

Vacuum   Hydraulic Brake Assistance

YES

Direction   assistance

YES

Automatic   locking

YES

Child   safety lock

YES
